The NSI8200 devices are high reliability bidirectional isolators that are compatible with I2C interface. The NSI8200 devices are safety certified by UL1577 support several withstand isolation voltages (3.75kVrms, 5kVrms), while providing high electromagnetic immunity and low emissions at low power consumption. The I2C clock frequency of the NSI8200 is up to 2MHz, and the common-mode transient immunity (CMTI) is up to 150kV/μs. Wide supply voltage of the NSI8200 device support to connect with most digital interface directly, easy to do the level shift. High system level EMC performance enhance reliability and stability of use.
Up to 5000Vrms insulation voltage
I2C clock rate: up to 2MHz
Power supply voltage: 2.5V to 5.5V
High CMTI: 150kV/μs
Chip level ESD: HBM: ±6kV
High system level EMC performance: Enhanced system level ESD, EFT, Surge immunity
Low power consumption: 3.35mA/ch (2 MHz)
Operation temperature: -40℃~125℃

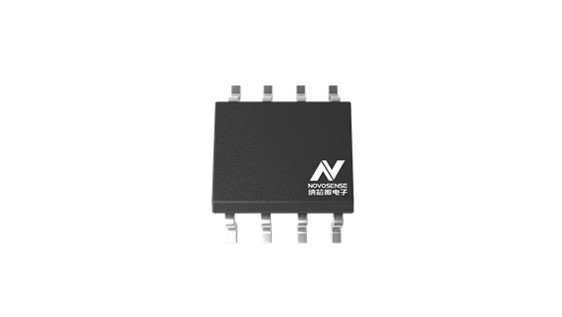

RoHS-compliant packages: SOP8, SOW16
UL recognition: up to 5000Vrms for 1 minute per UL1577
CQC certification per GB4943.1-2011
CSA Component Acceptance Notice 5A
DIN VDE V 0884-11:2017-01
Power over Ethernet
Isolated I2C, SMBus, or PMBus interface
I2C level shifting
Battery Management
>
>
>
>
>
>
>
